Detailed description
SpryStep® One is designed to help individuals with foot drop syndrome, a condition that makes it difficult to lift the front part of the foot.
This dynamic ankle-foot orthosis (AFO) is designed for simplicity and effectiveness, it comes in a single size, available for both the right and left foot.
It offers a balance between flexibility and rigidity, providing the necessary support to improve walking efficiency.

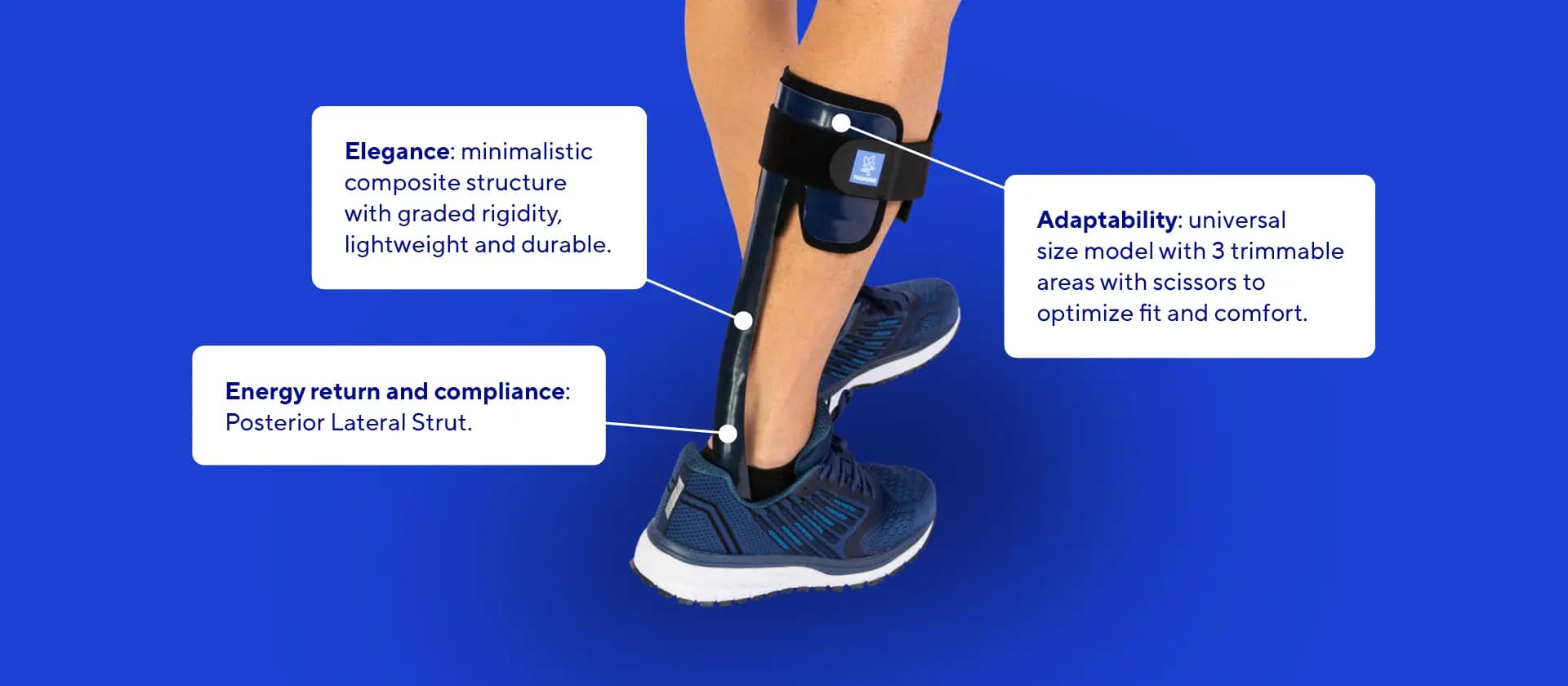

Key benefits of the SpryStep® One include:
- Adaptability: This universal size model has 3 trimmable areas to optimize fit and comfort: footplate (toe, heel and medial side of footplate) and calf cuff can easily be adjusted with scissors.
- Lightweight and Durable1: Made from high-quality composite materials, the SpryStep® One is both lightweight and robust, ensuring long-lasting1 performance and comfort.
- Enhanced Mobility: The unique posterior spiral strut design amplifies energy return, helping users move more efficiently.
- Customizable Fit: The trimmable forefoot section ensures an anatomical adjustment allow to fit for various foot sizes and shapes.
- Patient Compliance: The orthosis's elegant design increases patient compliance by providing both comfort and functionality.
It is classified as a Class I medical device and adheres to all relevant regulatory standards.
1 Cycle-testing independently performed under ISO 10328 Servo-Pneumatic Test System
Trimming allows to adapt the brace to the anatomy of the patients and to position it correctly in order to take into consideration the anatomical areas
Patient profile
Innovation
Specifications
Biomechanical deficits of neurological, traumatic or muscular origin.
Weak dorsiflexors.
Fatigueable footdrop.
Footdrop.
Footslap.
Plantar flexor strength ≤4.
Mild spasticity of the foot and ankle.
Mild knee instability during stance phase.
Knee hyperextension.
Circumduction.
Vaulting (plantarflexion of the contralateral ankle joint).
High knee gait.
Hip hiking/contralateral trunk bending.Do not use the product if the diagnosis has not been confirmed.
Do not apply the product in direct contact with broken skin.
Do not use in the event of known allergy to any of the components.
Do not use for patients weighing > 135 kg (300 lbs).
Severe loss of sensation in the lower limb.
Open ulcers of the foot, ankle or lower leg.
Moderate to severe oedema of the affected limb.
Moderate to severe spasticity of the foot and ankle.
Triplanar instability.
Plantarflexion contracture.
Moderate to severe foot deformities.
Moderate to severe ankle instabilities.
Running/high impact activities.Weight up to 135 kg
Rigid components: carbon fibre - epoxy resin - high density polyethylene.
Textile components: polyamide - elastane - polyurethane - ethylene vinyl
acetate.
The version of the manual available online is the current version.
Depending on the date of manufacture and place of purchase of the product, this original version of the manual may differ from the version physically present with the product.
