Detailed description

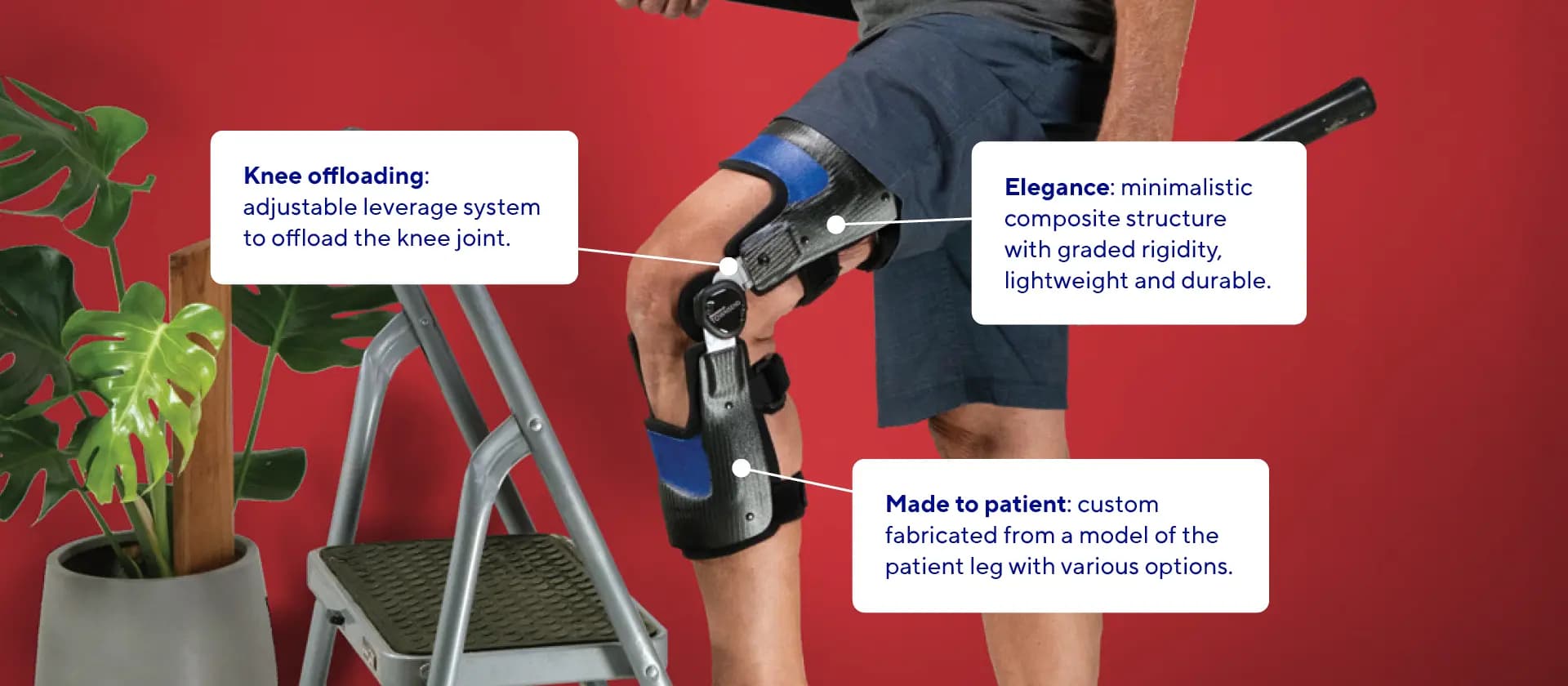

SpryStep® OA Knee Orthosis (KO) is designed to provide targeted support and relief for individuals suffering from knee osteoarthritis.
This knee orthosis is custom-made from a digital scan of the patient's leg, ensuring a precise fit that enhances both comfort and effectiveness.
Its composite structure combines strength and lightness, making it durable yet easy to wear.
The brace features an adjustable 3-point leverage system, known as Loadshifter technology, which can provide up to 9° of correction in varus or valgus alignment. This system helps to offload the knee, reducing pain and improving function. Additionally, the TM5+ hinge mimics the natural movement of the knee, offering ligament stabilization and motion control with adjustable extension and optional flexion settings.
Cycle-testing independently performed under ISO 10328 Servo-Pneumatic Test System
A2S biomechanical study "Biomechanical study of the stride during use of different braces" 2020 on similar Rebel(r) device.
Patient profile
Innovation
Specifications
Biomechanical deficits of neurological, traumatic, muscular or degenerative origin.
Conservative treatment of knee ligament injuries and/or ruptures (cruciate and/or lateral ligaments).
Joint instability/laxity (including for knee osteoarthritis).
Symptomatic unicompartimental femorotibial osteoarthritis (moderate to severe).
Knee off-loading for post-traumatic, postoperative or degenerative conditions.
Alternative to osteotomy or leg misalignment surgery.Do not use the product if the diagnosis has not
been confirmed.
Do not apply the product in direct contact with
broken skin.
Do not use in the event of known allergy to any
of the components.
Do not use for patients weighing > 180 kg
(400 lbs).
Open ulcers of the foot, ankle or lower leg.
Severe loss of sensation in the lower limb.Rigid components: carbon fibre - high density
polyethylene - stainless steel - aluminium -
polyoxymethylene - vinyl - polypropylene -
polyamide - epoxy resin - brass - acetal -
natural latex (in extension assist option only).
Textile components: polyamide - elastane -
polyurethane - ethylene vinyl acetate -
silicone - polyethylene.The medical device class I, mentioned on this document is CE marked according to the European Regulation 2017/745 on medical devices.
Please read carefully the instructions for use of the product.
The version of the manual available online is the current version.
Depending on the date of manufacture and place of purchase of the product, this original version of the manual may differ from the version physically present with the product.
Need more information about how to use your product ?
Create an accountOther users are also interested in these products
© STUDIO CATERIN
© STUDIO CATERIN Genu-GO Silistab® - Closed patellaGenu-GO Silistab® - Closed patellaProprioceptive elastic patellar knee support with closed patella
© STUDIO CATERIN
© STUDIO CATERIN Genu-GO Silistab® - Open patellaGenu-GO Silistab® - Open patellaProprioceptive elastic patellar knee support with open patella
© STUDIO CATERIN
© STUDIO CATERIN GenuPro ComfortGenuPro ComfortProprioceptive elastic patellar knee support
© STUDIO CATERIN
© STUDIO CATERIN Genu Ligaflex® CloseGenu Ligaflex® CloseHinged ligament knee brace with TM5 hinge
© STUDIO CATERIN
© STUDIO CATERIN Genu Ligaflex® OpenGenu Ligaflex® OpenHinged ligament knee brace with TM5 hinge
FAQ
- SpryStep® OA Knee Orthosis (KO) is a custom-fabricated knee brace designed to support and relieve knee osteoarthritis. It is suitable for treating knee osteoarthritis with varus or valgus misalignment and provides knee offloading and ligament stabilization.
- It is custom-made from a digital scan or a scan of a cast of the patient’s leg for a precise fit.
- The frame of the orthosis is made from lightweight and durable composite materials. The hinge can be made from aluminum or stainless steel.
- SpryStep® KO OA can be adjusted for different degrees of correction by 2 means: - Loadshifter technology is an adjustable 3-point leverage system that provides up to 9° of correction in varus or valgus alignment. - Or the correction can be directly built into the frame among the degree of correction given by the Healthcare Professional.
- There are three stiffness levels to match patient needs. Straps can be added to enhance the suspension and the stabilization of the brace.
- The orthosis is available in Full Shell and Uband styles. Shells can be anterior or posterior depending of the instability that you want to manage.Shell lengths range from 15 cm to 20 cm.
