Custom made dynamic ankle-foot orthosis (AFO)
©Thuasne®

Detailed description

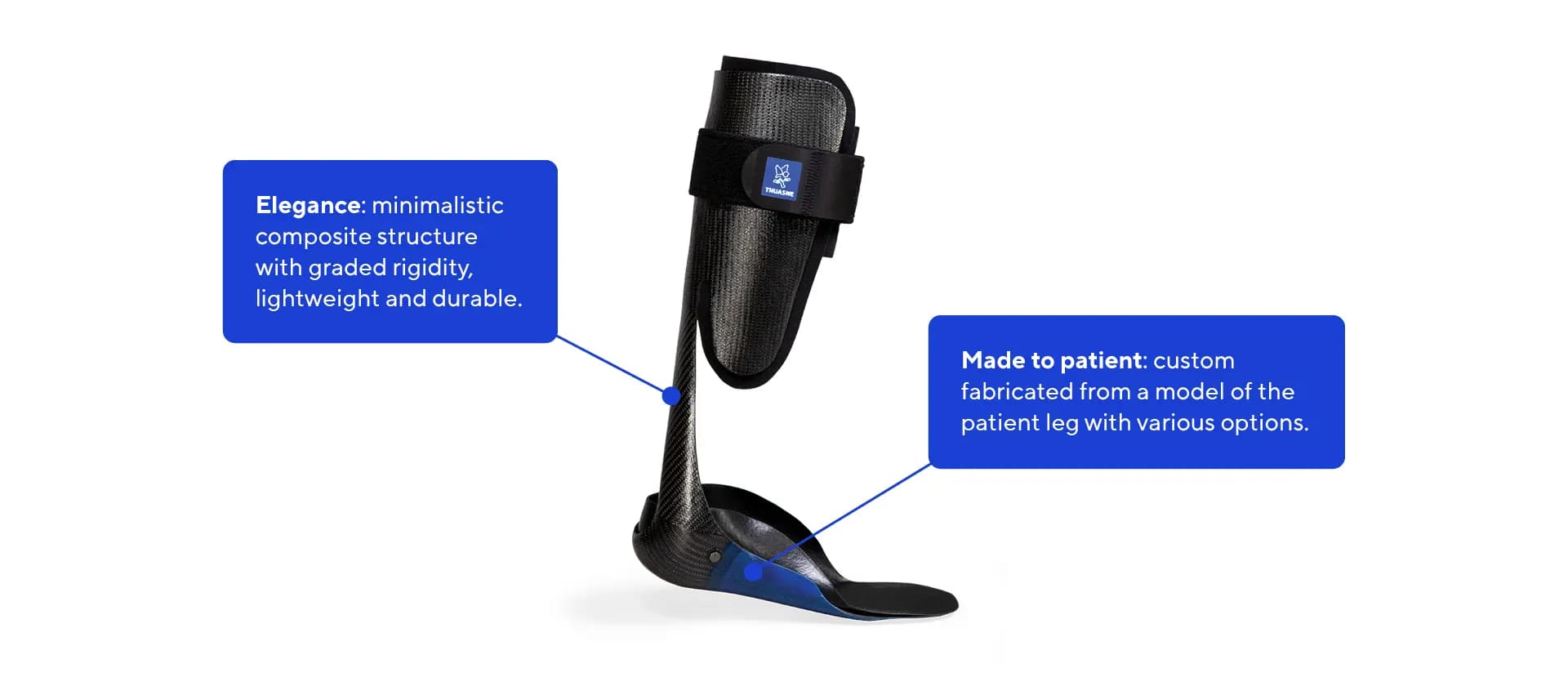

SpryStep® AFO Custom is engineered to provide support and stability for individuals experiencing lower limb muscle weakness due to neurological, traumatic, or muscular origins. This orthosis is custom-fabricated from a digital scan of the patient’s leg, ensuring a precise and comfortable fit. The use of advanced composite materials guarantees both strength and lightness, which is crucial for prolonged use1 and patient compliance.

SpryStep® AFO Custom includes different versions to cater to specific needs:

  • SpryStep® Flex: Features a posterior-lateral, spiral strut with a posterior calf cuff, suitable for augmenting remaining dorsiflexor muscle powers in more active users.
  • SpryStep® Original: Incorporates a posterior-lateral strut with a posterior calf cuff, suitable for aiding flaccid dorsiflexor muscle powers.
  • SpryStep® Plus: Comes with a posterior-lateral strut and anterior shell, designed for aiding remaining plantarflexor and knee stability muscle power.
  • SpryStep® Max: Includes a lateral strut with a wide anterior shell, aiding weakened plantarflexors and knee stability muscle power for less dynamic users.
  • SpryStep® Vector: Customizable in shape and stiffness the SpryStep® Vector offers superior control for the most complex conditions and patients.

Each model also includes a molded inner boot.

1 Cycle-testing independently performed under ISO 10328 Servo-Pneumatic Test System

Patient profile

  • NeurologicalNeurological
  • AdultAdult

Innovation

Specifications

  • These indications are biomechanical deficits of neurological, traumatic or muscular origin.
    Excessive plantarflexion during swing phase (secondary to weak dorsiflexors).
    Weakness of the pretibial muscles ≤ 3.
    Plantar flexor strength 0 to 4.
    Knee instability during stance phase.
    Quadriceps weakness.
    Knee hyperextension.
    Excessive knee flexion during stance phase (secondary to weak plantarflexors).
    Partial foot amputation (Chopart or more distal).
    Fatigueable footdrop.
    Footdrop.
    Foot slap.
    Circumduction.
    Vaulting (plantarflexion of the contralateral ankle joint in median stance phase).
    High knee gait.
    Hip hiking/contralateral trunk bending. Trendelenburg gait/limp
    The custom application allows to accommodate for the following after full assessment:
    Plantarflexion contracture.
    Knee hyperextension caused by calf muscle spasticity.
    High tone.
    Non-correctable triplanar instability.
    High pitched footwear.
    Running/high impact activities on lower limb.

  • Do not use the product if the diagnosis has not been confirmed.
    Do not apply the product in direct contact with broken skin.
    Do not use in the event of known allergy to any of the components.
    Do not use for patients weighing >160 kg.
    Open ulcers of the foot, ankle or lower leg.
    Severe loss of sensation in the lower limb.

  • Rigid components: carbon fibre - glass fibre -
    high density polyethylene - polypropylene
    copolymer - stainless steel.
    Textile components: polyamide - elastane -
    polyurethane - ethylene vinyl acetate.
